Tube Mill for Carbon Steel

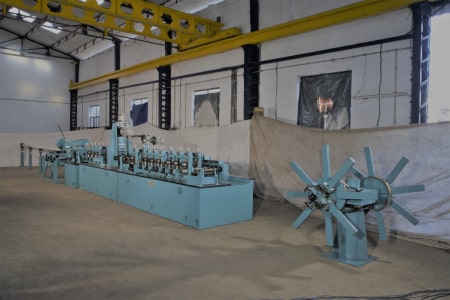

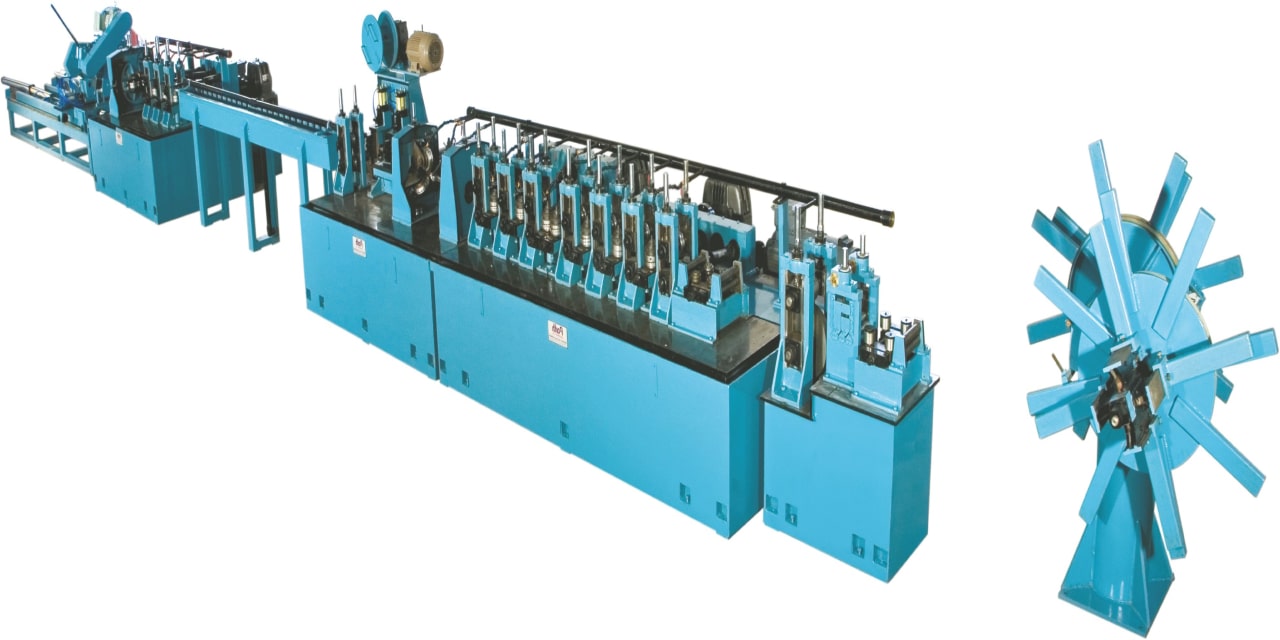

Tube Mill For Carbon Steel

	Features
	Tube mills for Various grades of Carbon Steel & Mild Steel
	Section Forming Mills For Ferrous & Non Ferrous Metals. As per Customer Requirement
	Emphasis on : Material selection : Manufacturing process selection : Dimensional & geometrical accuracy
	Cross key ways for permanent alignment of forming & sizing stands on the base frames
	Shafts from alloy steel, duly heat treated, ground, hard-chrome plated & ground again

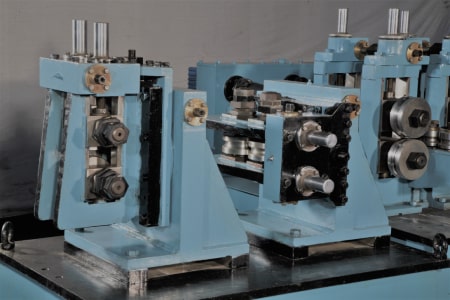

	Idler Roll stand assembly designed for vertical height adjustment while the mill is in operation
	Screw down movement of Turk’s head rolls by link-pin mechanism for ease in reforming thick walled sections
	W-forming system in Roll design for better edge-forming & freedom from wrinkle while forming sites with adverse t/D ratio
	Countinous Feeding Coil Accumulator For Uninterrupted Rolling During Coil Joining

Download

TUBE MILL FOR S.S. TUBES

Model Name	Tube Size Range*		Tube Thickness
	Min O.D.	Max O.D.	Min.	Max.
PARTH 25 TM-S	6	20	0.6	2.0
PARTH 40 TM-S	9	32	0.7	2.8
PARTH 50 TM-S	12	42	0.8	3.2
PARTH 65 TM-S	15	51	1.0	4.0
PARTH 90 TM-S	20	76	1.2	4.5
PARTH 9 0TM	20	90	1.2	4.0
PARTH 115 TM-S	25	90	1.6	5.4
PARTH 115 TM	25	115	1.6	4.8
PARTH 140 TM-S	32	115	2.0	6.0
PARTH 140 TM	32	141	2.0	5.4
PARTH 170 TM-S	60	168	2.5	5.5
PARTH 220 TM	75	219	2.5	7.7
PARTH 270 TM	90	273	3.0	9.0
